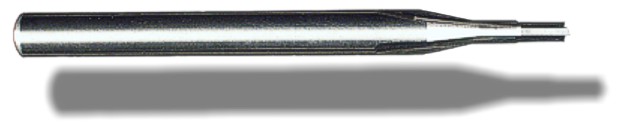

3-flute Carbide Counter-board Channel Cutter (RC3D8) - (0.125" shank)
- Geometry - 3 high-shear straight-flutes, stub length, 1/8 in. (3.18 mm) shank, fish tail point
- Length - 1.5 in. ±0.010 in.
- Diameter - nominal +0.0000 in., -0.0010 in.
- Shank dia. - 0.1250 in. (3.18 mm) +0.00, -0.0002 in.
- Runout (TIR) - ±0.0002 in.
- Max. depth of cut - 0.125 in. ±0.005 in.
- Anticipated Life - min. 10,000 linear inches (composite, Micarta®)
- Material - solid submicrograin carbide
- Operating RPM - CNC certified operation 20k RPM to 100k RPM
- Feeds / speeds - min. 175 - 200 in./min. @ 40 KRPM (Micarta®)
| Diameter | LOC | Flutes | Coating | Shank | OAL | Depth Rings | Reviews | Part Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0315" (0.80mm) | 0.14" (3.56mm) | 3 | 1/8" | 1.50" (38.1mm) | Available | RC3D8-0315-014F |
$16.64 |
0.0450" (1.14mm) | 0.09" (2.29mm) | 3 | 1/8" | 1.50" (38.1mm) | Available | RC3D8-0450-009F |
$16.64 |
0.0450" (1.14mm) | 0.09" (2.29mm) | 3 | ZrN | 1/8" | 1.50" (38.1mm) | Available | RC3D8-0450-009FC |
$20.14 |
0.0600" (1.52mm) | 0.13" (3.30mm) | 3 | 1/8" | 1.50" (38.1mm) | Available | RC3D8-0600-013F |
$16.64 |
0.0600" (1.52mm) | 0.13" (3.30mm) | 3 | ZrN | 1/8" | 1.50" (38.1mm) | Available | RC3D8-0600-013FC |
$20.14 |
0.0625" (1.59mm) | 0.32" (8.00mm) | 3 | 1/8" | 1.50" (38.1mm) | Available | RC3D8-0625-031F |
$16.64 |
0.0630" (1.60mm) | 0.32" (8.13mm) | 3 | 1/8" | 1.50" (38.1mm) | Available | RC3D8-0630-032F |
$16.64 |
0.0945" (2.40mm) | 0.32" (8.13mm) | 3 | 1/8" | 1.50" (38.1mm) | Available | RC3D8-0945-032F |
$14.68 |
0.1250" (3.18mm) | 0.30" (7.62mm) | 3 | 1/8" | 1.50" (38.1mm) | Available | RC3D8-1250-030F |
$14.68 |
