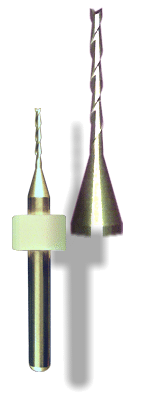

DeepReach 2-Flute High Aspect-ratio Fish-tail End-mills - (0.125" shank )

Specifications
  • Geometry - 2 flute, 1/8 in. (6.35 mm) shank, fish-tail tip
  • Length - as shown. ±0.010 in.
  • Aspect ratio - min. 6:1
  • Diameter - nominal  +0.0000 -0.0010 in.
  • Runout (TIR) - max 0.0002 in.
  • Max. depth of cut - nominal ±0.005 in.
  • Anticipated Life - depends on material being cut (min 20,000 in, blue or green jeweler's wax)
  • Material - solid submicrograin carbide
  • Operating RPM - CNC certified operation 1k RPM to 60k RPM

Notes

  • What is a "Bushing"? (bushings CANNOT be removed and reused)
  • What is a "Depth Ring"?


Benefits

  • Fish tail point eliminates  backside breakout and splintering
  • High flute volume supports high feed rates / chip loads
  • High aspect ratio for deep multi-pass cutting

Applications

  • Dimensional signage
  • 3D countouring
  • Cabinetry, furniture making
  • Jewelry mold making

US$50 Minimum Order
Think & Tinker, Ltd. (a Colorado Corporation) supports
the State of Arizona's courageous stand on the enforcement of US immigration law!
Every purchase made by our Arizona customers will receive a 10% discount.
Think for yourself, vote in every election, and don't make excuses for ignorance and apathy.
(full text of Arizona SB 1070 click here)

Item # Description Unit Price Bushing Depth Ring Enter Qty.
MM208-0100-006F  0.0100 in. (0.25 mm) DeepReach 2-flute fish-tail end-mill, 2-flute, 0.060 in. max DOC, 1.5 in. OAL   $21.38
MM208-0200-013F  0.0200 in. (0.51 mm) DeepReach, 2-flute fish-tail end-mill, 0.125 in. max DOC, 1.5 in. OAL   $16.86
MM208-0200-013FC  0.0200 in. (0.51 mm) ZrN coated DeepReach 2-flute fish-tail end-mill, 0.125 in. max DOC, 1.5 in. OAL   $20.74
MM208-0313-026F  1/32 in. (.0313 in., 0.8 mm) DeepReach Fish-tail End-mill, 2-flute, 0.26 in. max DOC, 1.5 in. OAL   $11.20
MM208-0625-050F  1/16 in. (.0625 in., 1.59 mm) DeepReach Fish-tail End-mill, 2-flute, 0.50 in. max DOC, 1.5 in. OAL   $10.54
MM208-1250-063B  1/8 in. (.1250 in., 3.18 mm) dia. DeepReach 2-flute ball-nose end-mill, 0.63 in. max DOC, 1.5 in. OAL   $24.60
MM208-1250-125BL  0.1250 in. (3.18 mm) DeepReach 2-flute Ball-nose End-mill, 1.250 in. max DOC, 3.0 in. OAL   $32.86
MM208-1250-125FL  1/8 in. (0.125 in, 3.18 mm) dia. DeepReach Fish-tail End-mill, 2-flute, 1.25 in. max DOC, 3.0 in. OAL   $28.88

Enter a Qty then select the "Order" Button.
Order your bits in 10 packs and save 9% off the retail price
Most orders ship within one busines day, subject to credit approval and availability.
