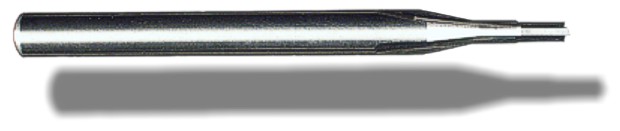

3-flute Carbide Counter-board Channel Cutter (RC3D8) - (0.125" shank)


Specifications

  • Geometry - 3 high-shear straight-flutes, stub length, 1/8 in. (3.18 mm) shank, fish tail point
  • Length - 1.5 in. 0.010 in.
  • Diameter - nominal  +0.0000 in.,  -0.0010 in.
  • Shank dia. - 0.1250 in. (3.18 mm) +0.00, -0.0002 in.
  • Runout (TIR) - 0.0002 in.
  • Max. depth of cut - 0.125 in. 0.005 in.
  • Anticipated Life - min. 10,000 linear inches (composite, Micarta)
  • Material - solid submicrograin carbide
  • Operating RPM - CNC certified operation 20k RPM to 100k RPM
  • Feeds / speeds - min. 175 - 200 in./min. @ 40 KRPM (Micarta)

Applications

  • Machining counter-board channels in matrix and composite materials.
  • Slotting FR-4 and other electronic substrates
  • Engraving in thin substrates


B
enefits

  • Shallow fish tail point insures smooth channel profile
  • High flute volume supports high feed rates / chip loads
  • Cutting edge geometry virtually eliminates chatter at high feed rates
  • Straight flute geometry eliminates lifting and gouging of the substrate
Carbide 3-flute Zero Helix Counterboart Channel Cutters for Phenolics and Composites
 Product Page
3-flute zero helix high-rake tip

If your purchase is over US$50,
you save $5 in shipping!
    Sales Items
         Only
Item # Description Unit Price Depth Ring Enter Qty.
RC3D8-0313-014F  0.0313 in. (0.79mm) dia, 3 straight-flute, fish-tail counter-board channel bit, 0.138 in. DOC   $15.70    Sale Price: $11.41
RC3D8-0315-014F  0.0315 in. (0.80mm) dia, 3 straight-flute, fish-tail counter-board channel bit, 0.138 in. DOC   $15.70
RC3D8-0450-009F  0.0450 in. (1.143mm) dia, 3 straight-flute, fish-tail counter-board channel bit, 0.090 in. DOC   $15.70
RC3D8-0450-009FC  0.0450 in. (1.143mm) dia, ZrN coated 3 straight-flute, fish-tail counter-board channel bit, 0.090 in. DOC   $19.00
RC3D8-0600-013F  0.0600 in. (1.524mm) dia, 3 straight-flute, fish-tail counter-board channel bit, 0.125 in. DOC   $15.70
RC3D8-0600-013FC  0.0600 in. (1.524mm) dia, ZrN coated 3 straight-flute, fish-tail counter-board channel bit, 0.125 in. DOC   $19.00
RC3D8-0945-032F  0.0945 in. (2.400mm)dia, 3 straight-flute, fish-tail counter-board channel bit, 0.315 in. DOC   $13.85
Enter the desired quantity (Enter Qty) then click on the "Add to Cart" Button.

Order your bits in 10-packs (10 of the same tool) and save 9% off the retail price
