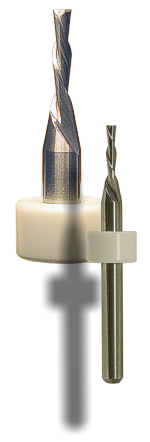

2-flute Carbide Down-cut End-mills - 1/8 in. (0.125 in.) shank


Carbide 2-flute endmills for laminates, balsa wood, soft plastic, plastic foam and delicate substrates


Specifications

  • Geometry - 2-flute down-cut, 1/8 in. (3.18 mm) shank, shallow fish tail point
  • Length - 1.5 in. 0.010 in.
  • Diameter - nominal ±0.0010 in.
  • Shank dia. - 0.1250 in. (3.18 mm) +0.00, -0.0002 in.
  • Helix angle - 28
  • Runout (TIR) - 0.0002 in.
  • Max. depth of cut - EFL varies by diameter 0.005 in.
  • Anticipated Life - 6,000 linear inches (ebony, CNC milling)
  • Material - solid submicrograin carbide
  • Ring Set - 0.800 in. 0.002 in. (optional)
  • Operating RPM - CNC certified operation 20k RPM to 100k RPM

Notes


B
enefits

  • Down-cut geometry eliminates top surface splintering and fraying
  • High flute volume supports high feed rates / chip loads
  • Cutting edge geometry virtually eliminates chatter at high feed rates
  • Flute geometry enhances rigidity for more accurate, single pass cutting at high chip loads
  • Compatible with basswood, balsa, pine, birch plywood, styrofoam

Applications

  • Cleaning up edges of inlay pockets and components
  • Shaping / routing materials for model airplanes
  • Machining reconstituted minerals
  • Machining and slotting composites
  • General purpose soft media machining

Tutorials


If your purchase is over US$50,
you save $5 in shipping!
    Sales Items
         Only
Item # Description Unit Price Depth Ring Enter Qty.
MD208-0313-013F  1/32in. (0.0313 in, 0.795mm) dia 2-flute Downcut fish-tail end-mill, 0.125 in. max DOC, 1.5 in. OAL   $9.24
MD208-0313-013FC  1/32in. (0.0313 in, 0.8mm) dia ZrN coated 2-flute Downcut fish-tail end-mill, 0.125 in. max DOC, 1.5 in. OAL   $12.55
MD208-0380-013F  0.0380 in (0.965mm) dia 2-flute Downcut fish-tail end-mill, 0.125 in. max DOC, 1.5 in. OAL   $9.35
MD208-0394-013F  0.0394 in (1.000mm) dia 2-flute Downcut fish-tail end-mill, 0.125 in. max DOC, 1.5 in. OAL   $9.35
MD208-0394-025F  0.0394 in (1.000mm) dia 2-flute Downcut fish-tail end-mill, 0.250 in. ( max DOC, 1.5 in. OAL   $10.22
MD208-0625-024F  1/16in (0.0625 in, 1.588mm) dia 2-flute Downcut fish-tail end-mill, 0.240 in. max DOC, 1.5 in. OAL   $10.33
MD208-0625-024FC  1/16in (0.0625 in, 1.59mm) dia ZrN coated 2-flute Downcut fish-tail end-mill, 0.240 in. max DOC, 1.5 in. OAL   $13.64
MD208-0630-024F  1.60mm (0.0630 in) dia 2-flute Downcut fish-tail end-mill, 0.240 in. max DOC, 1.5 in. OAL   $10.33
MD208-0767-032F  0.0768 in (1.950mm) dia PreciseBit 2-flute Downcut fish-tail end-mill, 0.320 in. max DOC, 1.5 in. OAL   $10.22
MD208-0787-032F  0.0787 in (2.000mm) dia PreciseBit 2-flute Downcut fish-tail end-mill, 0.320 in. max DOC, 1.5 in. OAL   $10.22
MD208-0938-038F  3/32 in. (0.0938, 2.38 in.) dia PreciseBit 2-flute Downcut fish-tail end-mill, 0.375 in. max DOC, 1.5 in. OAL   $10.33
MD208-1161-050F  2.95 mm (0.1161 in.) dia PreciseBit 2-flute Downcut fish-tail end-mill, 0.50 in. max DOC, 1.5 in. OAL   $10.33
MD208-1181-050F  0.1181 in (3.000mm) dia PreciseBit 2-flute Downcut fish-tail end-mill, 0.50 in. max DOC, 1.5 in. OAL   $10.33
MD208-1250-050F  1/8in (0.1250in, 3.175mm) dia PreciseBit 2-flute Downcut fish-tail end-mill, 0.50 in. max DOC, 1.5 in. OAL   $10.33
MD208-1250-050FC  1/8in (0.1250in, 3.18mm) dia PreciseBit ZrN coated 2-flute Downcut fish-tail end-mill, 0.50 in. max DOC, 1.5 in. OAL   $13.64
Enter the desired quantity (Enter Qty) then click on the "Add to Cart" Button.

Order your bits in 10-packs (10 of the same tool) and save 9% off the retail price
